Reinforced Composite Bracket with Metal Slot
Clear Bracket
-
[Roth Type Description]
| TOOTH |
TORQUE |
ANG. |
| UPPER CENTRALS |
+14º |
+5º |
| UPPER LATERALS |
+7º |
+8º |
| UPPER CUSPIDS |
0º |
+10º |
| UPPER 1ST BICUSPIDS |
-7º |
0º |
| UPPER 2ND BICUSPIDS |
-7º |
0º |
| LOWER INCISORS |
-1º |
0º |
| LOWER CUSPIDS |
-7º |
+6º |
| LOWER 1ST BICUSPIDS |
-11º |
0º |
| LOWER 2ND BICUSPIDS |
-17º |
0º |
* Appropriate In & Out *
Brackets for upper 1st & 2nd bicuspids are designed to adjust the difference of bucco-lingual direction.

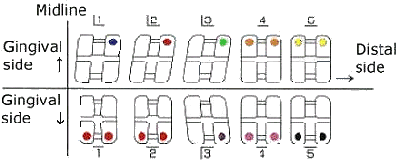

[Color Code System]
 A dot in different color is marked on the tie wing distally at the gingival side for identification and positioning of the bracket. (It is wiped out easily by chemicals like ethanol.)
[The 1st Aesthetic Bracket with Bendable Hook]
Metal hook is anchored in the bracket and can be bent bucco-lingually, if necessary.
[Types & Product Code]
TWIN ROTH
| TOOTH |
.018 SLOT |
.022 SLOT |
| RIGHT |
LEFT |
RIGHT |
LEFT |
| UPPER CENTRALS |
160-1141 |
160-1142 |
165-1141 |
165-1142 |
| UPPER LATERALS |
160-1271 |
160-1272 |
165-1271 |
165-1272 |
| UPPER CUSPIDS |
160-1301 |
160-1302 |
165-1301 |
165-1302 |
| UPPER 1ST BICUSPIDS |
160-1470 |
165-1470 |
| UPPER 2ND BICUSPIDS |
160-1570 |
165-1570 |
| LOWER INCISORS |
160-5110 |
165-5110 |
| LOWER CUSPIDS |
160-5371 |
160-5372 |
165-5371 |
165-5372 |
| LOWER 1ST BICUSPIDS |
160-5410 |
165-5410 |
| LOWER 2ND BICUSPIDS |
160-5570 |
165-5570 |
| ONE PATIENT KIT 3-3 |
162-0301 |
167-0301 |
| ONE PATIENT KIT 5-5 |
162-0501 |
167-0501 |
| TOOTH |
Torque |
Angulations
| .018 slot |
.022 slot |
| Right |
Left |
Right |
Left |
| UPPER & LOWER Cuspid |
0K |
+6K |
160-5301 |
160-5302 |
165-5301 |
165-5302 |
*The right & left sides are indicated based on the LOWER for common use product.
TWIN ROTH WITH HOOK
| TOOTH |
.018 SLOT |
.022 SLOT |
| RIGHT |
LEFT |
RIGHT |
LEFT |
| UPPER CUSPIDS |
160-3301 |
160-3302 |
165-3301 |
165-3302 |
| UPPER 1ST BICUSPIDS |
160-3471 |
160-3472 |
165-3471 |
165-3472 |
| UPPER 2ND BICUSPIDS |
160-3571 |
160-3572 |
165-3571 |
165-3572 |
| LOWER CUSPIDS |
160-7371 |
160-7372 |
165-7371 |
165-7372 |
| LOWER 1ST BICUSPIDS |
160-7411 |
160-7412 |
165-7411 |
165-7412 |
| LOWER 2ND BICUSPIDS |
160-7571 |
165-7572 |
165-7571 |
165-7572 |
| ONE PATIENT KIT 3-3 |
162-3301 |
167-3301 |
| ONE PATIENT KIT 5-5 |
162-3501 |
167-3501 |
| TOOTH |
Torque |
Angulations
| .018 slot |
.022 slot |
| Right |
Left |
Right |
Left |
| UPPER & LOWER Cuspid |
0K |
+6K |
160-7301 |
160-7302 |
165-7301 |
165-7302 |
*The right & left sides are indicated based on the LOWER for common use product.

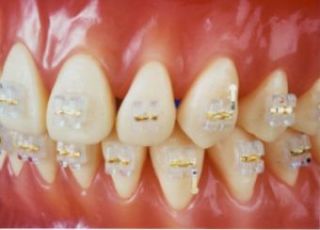

TWIN ROTH GOLD
| TOOTH |
.018 SLOT |
.022 SLOT |
| RIGHT |
LEFT |
RIGHT |
LEFT |
| UPPER CENTRALS |
190-1141 |
190-1142 |
195-1141 |
195-1142 |
| UPPER LATERALS |
190-1271 |
190-1272 |
195-1271 |
195-1272 |
| UPPER CUSPIDS |
190-1301 |
190-1302 |
195-1301 |
195-1302 |
| UPPER 1ST BICUSPIDS |
190-1470 |
195-1470 |
| UPPER 2ND BICUSPIDS |
190-1570 |
195-1570 |
| LOWER INCISORS |
190-5110 |
195-5110 |
| LOWER CUSPIDS |
190-5371 |
190-5372 |
195-5371 |
195-5372 |
| LOWER 1ST BICUSPIDS |
190-5410 |
195-5410 |
| LOWER 2ND BICUSPIDS |
190-5570 |
195-5570 |
| ONE PATIENT KIT 3-3 |
192-0301 |
197-0301 |
| ONE PATIENT KIT 5-5 |
192-0501 |
197-0501 |
| TOOTH |
Torque |
Angulations
| .018 slot |
.022 slot |
| Right |
Left |
Right |
Left |
| UPPER & LOWER Cuspid |
0K |
+6K |
190-5301 |
190-5302 |
195-5301 |
195-5302 |
*The right & left sides are indicated based on the LOWER for common use product.
TWIN ROTH GOLD WITH HOOK
| TOOTH |
.018 SLOT |
.022 SLOT |
| RIGHT |
LEFT |
RIGHT |
LEFT |
| UPPER CUSPIDS |
190-3301 |
190-3302 |
195-3301 |
195-3302 |
| UPPER 1ST BICUSPIDS |
190-3471 |
190-3472 |
195-3471 |
195-3472 |
| UPPER 2ND BICUSPIDS |
190-3571 |
190-3572 |
195-3571 |
195-3572 |
| LOWER CUSPIDS |
190-7371 |
190-7372 |
195-7371 |
195-7372 |
| LOWER 1ST BICUSPIDS |
190-7411 |
190-7412 |
195-7411 |
195-7412 |
| LOWER 2ND BICUSPIDS |
190-7571 |
195-7572 |
195-7571 |
195-7572 |
| ONE PATIENT KIT 3-3 |
192-3301 |
197-3301 |
| ONE PATIENT KIT 5-5 |
192-3501 |
197-3501 |
| TOOTH |
Torque |
Angulations
| .018 slot |
.022 slot |
| Right |
Left |
Right |
Left |
| UPPER & LOWER Cuspid |
0K |
+6K |
190-7301 |
190-7302 |
195-7301 |
195-7302 |
*The right & left sides are indicated based on the LOWER for common use product.
| |
